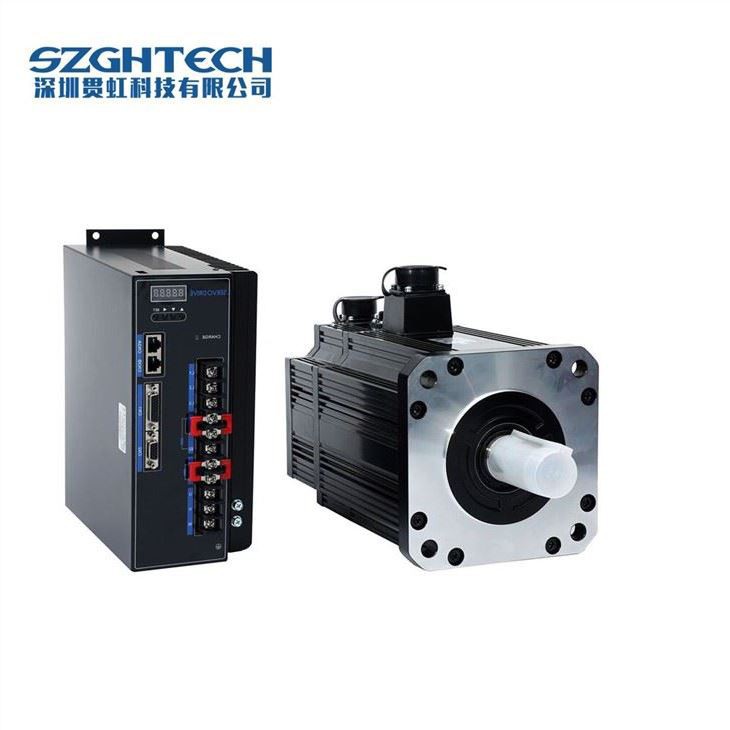

4Nm 1200W Servo Drivers and Motor

GH-11120DC is 1200W and high of rotation speed with 3000RPM, and 4NM servo motor,optimum matching with our AC servo driver to real ize optimum servo performance. There are two kinds type servo driver, GH-SD2026 that matching for 1200W servo motor.

1200W High precision Servo Drivers and Motor 4Nm 3000rpm for Machine Matched CNC Controller 1%1AH[DSI4(KRDN4Y5EQ@MM

We have through ISO9001,and CE certificate, we are specializing in researching, developing and serve electric motor in Shenzhen,China.We supply the production of AC servo motor and driver, stepper motor and driver

Features

GH-11120DC is 1200W and high of rotation speed with 3000RPM, and 4NM servo motor,optimum matching with our AC servo driver to real ize optimum servo performance.

There are two kinds type servo driver, GH-SD2026 that matching for 1200W servo motor.

Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.

Motor Model	SZGH-11120DC
Rated Power(W)	1.2
Rated Voltage(V)	220
Rated Crrent(A)	5.0
Rated Speed(RPM)	3000
Rated Torque(NM)	4
Peak Torque(NM)	12
Voltage Constantv10r/min	54
Torque Coefficient(NM/A)	0.8
Rotor Inertia（Kg.m²）	0.54*10
Line-Line Resistance（Ω）	1.09
Line-Line Inductance(mH)	3.3
Machanical Time-Constant(Ms)	3
Encoder Resolution(PPR)	2500
Insulation Class	Class B
Safety Class	IP65
The Operating of Evironmental Condition	Temperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
Weight(KG)	6

8(001)

9(001)

20210119100508f638db1644574756bc361fba8e4f6cae(001)

20210119100512f45f2f66edff40adb05e79916dfd372c(001)

2021011910051408fa774b887247b988421343478d4694(001)
