Cnc Controller 3 Axis Full Kit

CNC Milling Controller: 1) Support Dual analog voltage(0~10V)& C-axis for Spindle servo 2) Support RTCP mode 3) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes 4) Scanning Function & Follow Mode & Auto Tool Setter/Probe

_20220707145050

Number of control axes	3 axes
Minimum programming	0.001mm
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Manual continuous	One axis or simultaneous multi-axis
Screen saver function	Screen saver function
Program editing	Male / English, relative / absolute programming
Pre-reading function	Short line preprocessing 10,000 lines
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Communication function	RS232, U disk interface
Program editing	Male / English, relative / absolute programming
Tool functions:	1)Tool length compensation 2)Tool point radius compensation (C type)
Compensation function	1) Backlash compensation: 0 mm~2 mm (or 0 inch~0.2 inch),the backlash compensation method and frequency are set by parameters; 2) Memory type pitch error compensation: a total of 1024 compensation points, the number of compensation points for each axis parameter setting.

1.-&(1000MC)(1)

3.-(1000MC)

GH-1000TC

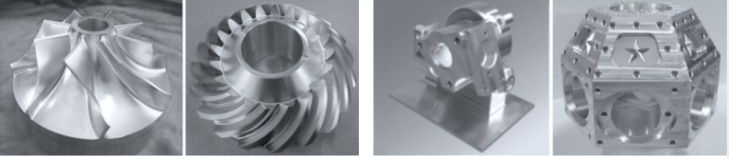

Detailed case: RTCP five-axis linkage -- box type:

N74@9}$4PPWY)E77}~9T}%I

mold type:

$`Z43{MIQ5US}9G4{V}NM_QR$

FAQ

Q1: Are you a manufacturer?
A: Yes. We are a manufacturer with years experience.

Q2: How about your after-sale service?
A: We provide technical support via online communication.Moreover, if you need, we can also send our technical staff for onsite installation or debugging. Welcom to you visit our company to learn and check the product.

Q3: What is your guarantee term?
A: The warranty period for our products is one year along with lift time technical support.

Q4: Do you test all your machines before delivery?

A: Yes, we have 100% test before delivery.

If you have any questions, pls feel free to contact us. We'll be sure to get back to you within an hour on a business day.
