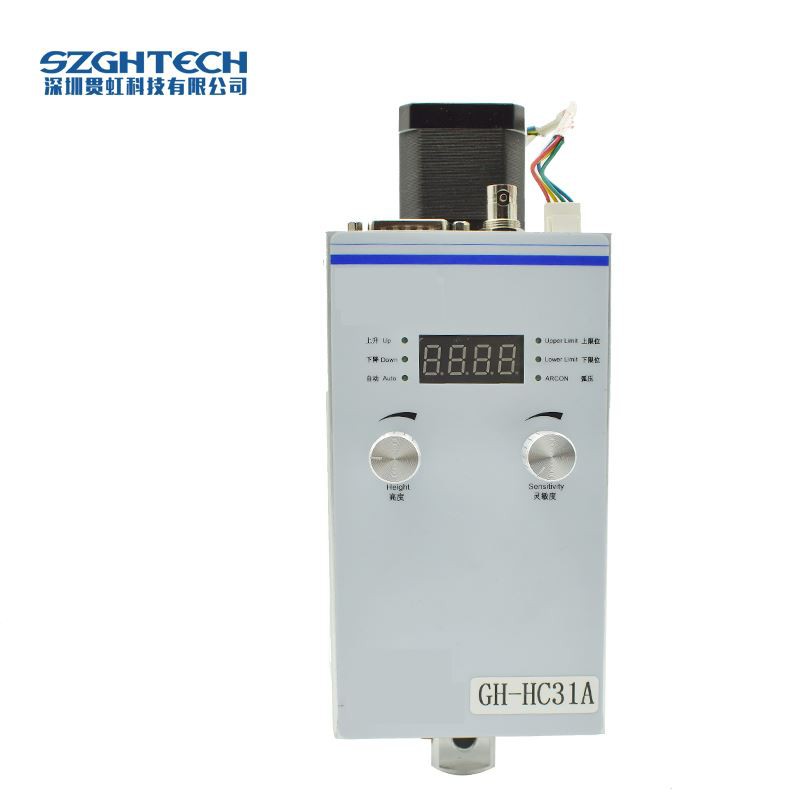

Torch Height Controller

The GH-HC31 height controller for flame/plasma cutting torch is high performance and easy to use, automatic control module for cutting torch height with the integration of mechanical increase and electric control specially designed for portable flame and plasma cutting machine.

CNC Plasma controller Torch Height Controller 220V Automatic Arc and Cap Voltage with English Manual For CNC Flame Plasma Cutting Machine

12(001)

Rade name	Flame / plasma cutting torch height controller
Power Requirements	DC 24V ± 2 V 220V 3 A
Communication interface	RS232
Manual adjustment range	0 ~ 100 mm
Automatic increase of control range	3 ~ 30 mm
Automatic increase of control	3000 mm / min (30 ° slope)
Control precision	±0.5 mm
Dimensions of box body	(155 × 87 × 71) mm
Operating temperature	-10 ~ 50 degree centigrade
Detection system	capacitance-type detector, arc voltage height detector
Manual adjustment range	0-100mm

1	Stepper motor instead of the traditional DC motor
2	The height of cutting nozzle is displayed directly in the mode of capacitance height control
3	Integration of mechanical lifting device and height controller
4	All Digital Technology
5	Simple and convenient linearization calibration
6	It can be used in tough environment
7	There are various interfaces that are easy to use
8	RS232 communication interface
